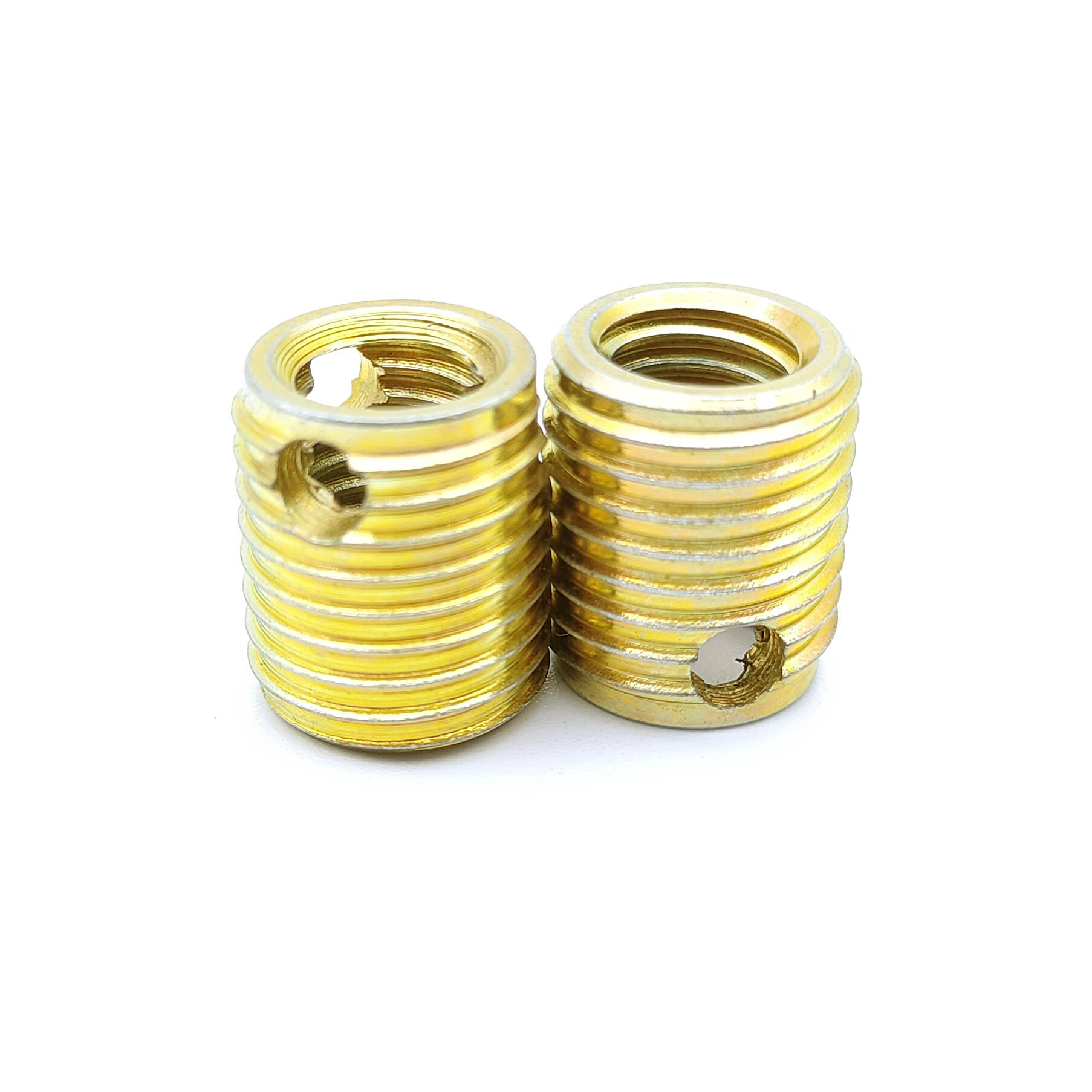

M6 M8 Self - Tapping Thread Inserts Type Of 307 Stainless Steel
Thread Insert
Introduction
Self-tapping threaded sleeve braces also called self-tapping, is a
new type of reinforcing the strength of the threaded fasteners,
self-tapping threaded sleeve has inner and outer tooth pattern,
embedded in plastic, cast iron, aluminum, copper and other soft
material, can be formed relatively High-strength internal threaded
holes, self-tapping screw sleeves (self-tapping braces) can also
repair damaged internal threads.
Self-tapping threaded sleeve mounted without prior tapping,
installation tool can be used directly screwed into specific holes
in the base material reserved for the female thread teeth have been
crushed and the original can be used the same screw, economic
appearance, the new articles but also increases its thread
strength.
Self-tapping thread inserts (self-tapping braces) is now widely
used in the automotive industry, rail car industry, shipbuilding
industry, household appliances, construction machinery, business
machines, electronic products, engineering plastics, advanced
modular furniture, aluminum die-casting and other industries.
Self-tapping screws are generally classified iron teeth, finger F
is a wood-type teeth, usually countersunk head, generally refers to
a type A A dental tip end banquet i.e., B-type B generally refers
teeth, i.e. flat end banquet.
Material
The materials used in domestic self-tapping screw sleeves are
generally carbon steel and stainless steel.
1. Carbon steel: Color-plated zinc, suitable for surface
carburizing heat treatment on aluminum alloy, copper alloy, plastic
and other substrates with low engineering strength.
2. Stainless steel SUS303 (304, 316, 316L): suitable for surface
passivation treatment on cast iron and other products with higher
strength.
| Options |
| Model | 302 | 303 | 307 | 308 |
| Material | Stainless steel | Carbon steel |
| Standard | KKV |
| Model | Metric | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 |
| British | 6-32 | 8-32 | 10-32 | 1/4-20 | 1/2-13 | 5/8-11 |
| Accuracy | Green | Red | Golden | Blue | Non | Customized
|
Use
Self-tapping threaded inserts are self-tapping threaded inserts
with slots or holes. Slotted threaded threaded inserts are
recommended for most applications. On some materials, this threaded
sleeve provides the perfect specific thread lock function. If it
still does not work, it is generally recommended to use the 307/308
type, which has made a major breakthrough in the difficulty of
material cutting. This product not only has a very thick wall, but
also has three circular holes with cutting ability scattered on the
wall. The 307/308 product is especially suitable for the case where
the material thickness is not too wide.
