High Resistance Screw Fastener M10 * 1.5 - 14mm Key - Locking
Threaded Inserts
Information

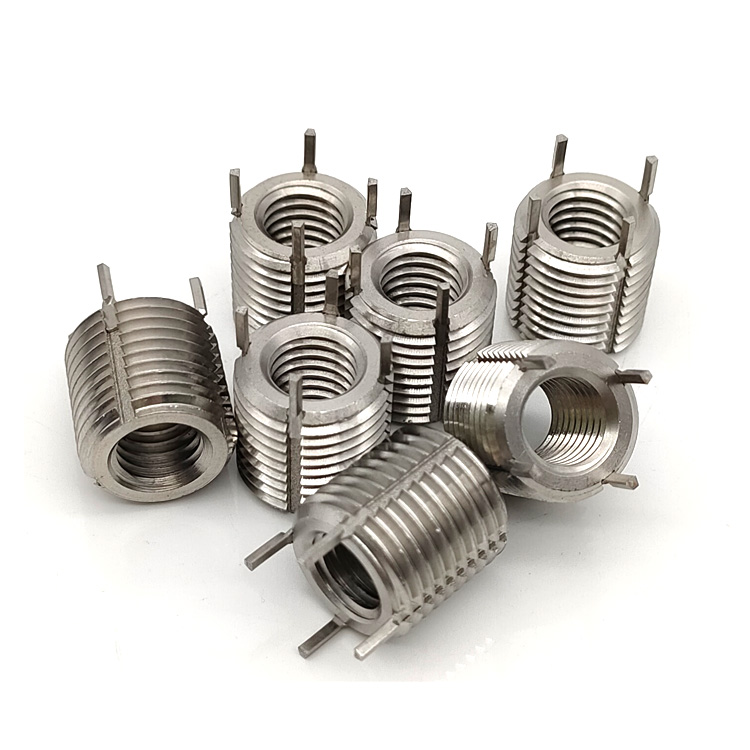

Key locking threaded insert is a special fastener with threads
inside and outside, and 4 or 2 latch keys on the outer thread. The
key locking threaded insert is inserted into the bottom hole after
tapping, and then the bolt is pressed in to achieve a strong
fastening effect.
Features
1. It can effectively repair damaged threads;
2. It is especially suitable for applications that require
high-strength internal threads, which can effectively resist
earthquakes and pull out;
3. Relative to ordinary stainless steel wire thread insert, it can
enhance the strength of the threaded hole more effectively;
4. The key-locking thread insert has carbon steel and stainless
steel, and the specifications also have metric and inch sizes;
6. Simple to use, easy to install and operate.
From the appearance of the product, keylocking threaded inserts can
be divided into thin-wall type and heavy-duty type. There are also
reinforced and super heavy types.
Structure
1, 2 to 4 fixed keys
2. The sheath material is C1215 steel and is treated with phosphate
rust prevention
3. The fixed key is made of 302 stainless steel
4. Easy to install and disassemble
5. The toolbox contains a complete set of products
Specification
| Material | Stainless Steel, Stainless Steel 304 |
| Place of Origin | Henan, China |
| Model Number | M10 * 1.5 - 14mm |
| Standard | ISO Metric/UNC/UNF |
| Feature | Four Keys |
| Manufacture Processing | Automatic Lathe/CNC Lathe |
| Connection | Common Bolt |
Key Locking thread insert(Thin-Walled) Parameter
| INTERNAL | EXTERNAL | LENGTH(mm) | DRILLING BIT SIZE | DEPTH OF HOLE |
| M2*0.4P | M4*0.7P | 3 | 3.4 | 4 |
| M2.5*0.45P | M4.5*0.75P | 3.81 | 3.9 | 5 |
| M3*0.5P | M5*0.8P | 4.25 | 4.4 | 5.5 |
| M4*0.7P | M6*0.75P | 5.25 | 5.5 | 6.5 |
| M5*0.8P | M8*1.25P | 8 | 6.9 | 9.5 |
| M6*1P | M10*1.25P | 10 | 8.8 | 11.5 |
| M8*1P | M12*1.25P | 12 | 10.8 | 13.5 |
| M8*1.25P | M12*1.25P | 12 | 10.8 | 13.5 |
| M10*1P | M14*1.5P | 14 | 12.8 | 15.5 |
| M10*1.25P | M14*1.5P | 14 | 12.8 | 15.5 |
| M10*1.5P | M14*1.5P | 14 | 12.8 | 15.5 |
| M12*1.25P | M16*1.5P | 16 | 14.75 | 17.5 |
| M12*1.5P | M16*1.5P | 16 | 14.75 | 17.5 |
Key Locking thread insert(Heavy) Parameter
| INTERNAL | EXTERNAL | LENGTH(mm) | DRILLING BIT SIZE | DEPTH OF HOLE |
| M4*0.7P | M8*1.25P | 8 | 6.9 | 9.5 |
| M5*0.8P | M10*1.25P | 10 | 8.8 | 12.5 |
| M6*1P | M12*1.25P | 12 | 10.8 | 14.5 |
| M8*1P | M14*1.5P | 14 | 12.8 | 16.5 |
| M8*1.25P | M14*1.5P | 14 | 12.8 | 16.5 |
| M10*1.5P | M16*1.5P | 16 | 14.75 | 18.5 |
| M10*1.25P | M16*1.5P | 16 | 14.75 | 18.5 |
| M12*1.25P | M18*1.5P | 18 | 16.75 | 20.5 |
| M12*1.75P | M18*1.5P | 18 | 16.75 | 20.5 |
| M14*1.5P | M20*1.5P | 20 | 18.75 | 22.5 |
| M14*2P | M20*1.5P | 20 | 18.75 | 22.5 |
| M16*1.5P | M22*1.5P | 22 | 20.5 | 24.5 |
| M16*2P | M22*1.5P | 22 | 20.5 | 24.5 |
| M18*1.5P | M24*1.5P | 24 | 22.5 | 26.5 |
| M20*1.5P | M30*2P | 30 | 28 | 34.5 |
| M20*2.5P | M30*2P | 30 | 28 | 34.5 |
| M22*1.5P | M32*2P | 32 | 30 | 36.5 |
| M24*2P | M33*2P | 33 | 31 | 37.5 |
| M24*3P | M33*2P | 33 | 31 | 37.5 |
