M2.5 Non - Magnetic Brass Threaded Inserts For Composites DIN8140
Radiator Or Gearbox
Information

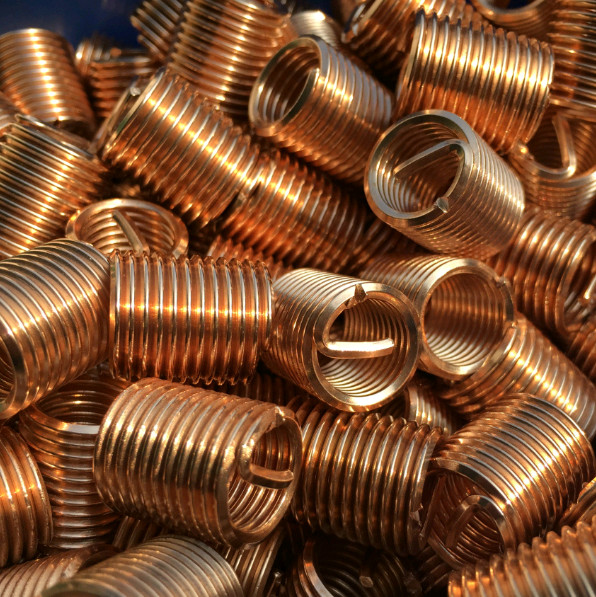

Copper screw sleeve is made of phosphor bronze, its electric
conductivity has been improved significantly, and it is
non-magnetic. It is suitable for products with special requirements
on electric conductivity and magnetism.
The thread is a new type of internal thread, which can be fixed on
the threaded connection and screwed into the threaded hole of the
connected part. The standard internal thread is captured (or
formed) and then screwed in. It is also called a threaded sleeve,
or wire for short. It is a kind of spring-shaped concentric body at
home and abroad with high-strength, shell and ground-bright roller
diamond-shaped stainless steel wire cleaning equipment processing
technology. It is mainly used for wear-resistant threads and
low-strength. The principle is to connect the thread and the base.
Connection, manufacturing thread manufacturing performance,
improved the threaded holes of low-strength engineering materials
such as aluminum glass, magnesium alloy, structure, plastics, etc.,
and the threaded holes of low-strength engineering materials such
as plastics, which can form international standards and serious
internal The thread has the functions of high connection strength,
earthquake resistance, impact resistance and fatigue resistance. It
can disperse heating to protect the thread of the substrate, track
the life of the electronic substrate, and is widely used.
Screw thread inserts can be used to strengthen tapping and extend
application life. The components are shared across the bolts and
holes, thereby increasing or maintaining the pull-out resistance.
Free routing thread inserts are usually made of 304 (18-8)
stainless steel wire rolled into a diamond-shaped partial surface.
Parameter
| Options |
| Material | 304H | 321 | 316 | Inconel X750 |
| Standard | DIN-8140 | MS-21209 |
| Model | Metric | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 |
| British | 6-32 | 8-32 | 10-32 | 1/4-20 | 1/2-13 | 5/8-11 |
| Length | 1d | 1.5d | 2d |
| Accuracy | Green | Red | Golden | Blue | Non | Customized |
Features
1 Wire thread insert used in a variety of low-strength materials,
wear resistance can be improved largely screw connection, to avoid
damage to the connection thread.
2 Due to the wire thread insert a certain flexibility, allows more
uniform load distribution on the thread turns, pitch and thread
type to eliminate a deviation between the screw and the screw, and
can absorb vibrations, thereby increasing the strength of the screw
connection and resistance to Fatigue strength.
3 The locking nut can type wire locking screw in the threaded hole,
the screw will not loosen when subjected to shock and vibration
buckle, usually better than the performance of the process of the
locking device.
4 Compared with the method of inserting steel or copper bushings,
under the same strength conditions, screws with smaller size and
higher strength can be selected, which can reduce the volume and
reduce the weight.
5 The wire thread insert hardness than the screw, and thus screw
connection with small wear during the assembly and disassembly, can
be used repeatedly. According to experimental study, wire thread
insert is more than 7 times the tensile strength of the screw, and
therefore will not damage the wire thread insert in screw breakage.
Why Choose Us?
1. A factory with more than 20 years' experience in manufacturing
of Thread Inserts.
2. Competitive pricing & military quality.
3. Quick replies to quotations and requests for information.
4. Timely deliveries, rich experience in IMP and EXP.
5. Advanced R & D center, more than one thousand types of threaded
inserts and tools.
6. Strict quality control system, passed the SGS and ISO9001: 2015.
7. Quality tools & products, as good as heli-coil, Keensert, Ensat
and etc.
8. Comprehensive after-sales support and troubleshooting.
9. Famous brands in China .
10. High quality enterprises in the region.
