M3-M16 Type 307 / 308 Self Tapping With 3 Cutting Holes For Battery Pack

Introduction

• The inside and outside of the self-tapping screw sleeve has tooth grain, embedded in plastic, aluminum alloy, cast iron, copper and other soft materials, can form a higher strength of the internal thread hole, self-tapping screw sleeve can also repair the damaged internal thread.
• Self-tapping screw sleeve has self-tapping capability, so the base material need not be tapped in advance to save cost.
• Large contact surface with finished products, strong tensile strength, lower strength materials can be used in product design.
• For the female thread that has worn out or broken teeth, use the self-tapping screw sleeve to continue to use the same screw.
• Strong resistance to vibration, can prevent looseness.
• There is no clearance with the base material, and the base material has good air tightness if it contains bubbles.
• Self-tapping screw sleeve installation is simple and rapid, only one assembly tool, low cost, almost no defect rate.
• The tapping screw sleeve is generally made of carbon steel and stainless steel. Carbon steel can be plated with colored zinc, yellow zinc, blue and white zinc.

Parameter

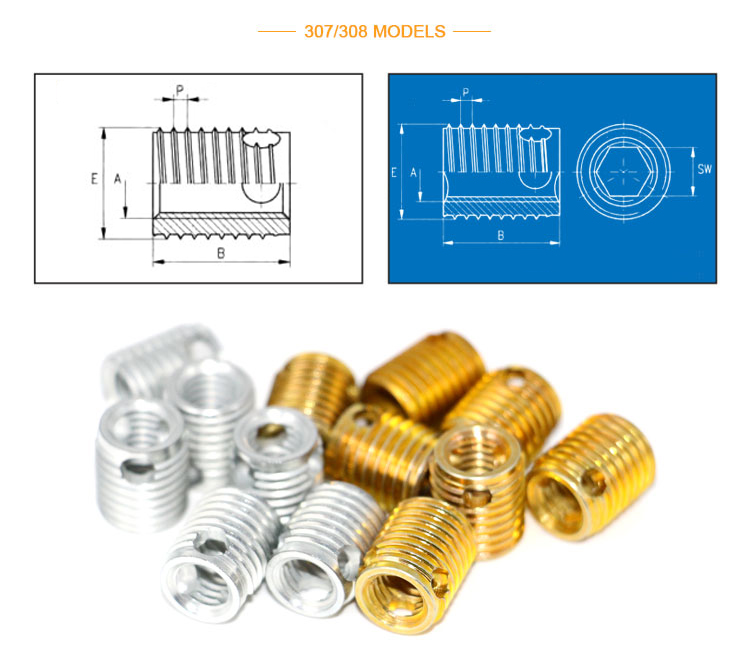

For difficult to cut materials, it has larger wall thickness, shallower but sharper external thread. The screw sleeve uses three round holes as cutting edge. The difference between 307 and 308 is the length of the insert.

Feature

● Lightweight yet robust design gives superior holding power

● Quick and simple installation process

● Extensive stock of METRIC, UNC, UNF inserts

● Large variety of materials and coating options

● Special lengths and diameter pitch combinations available to order

● A wide range of tooling options available

Xinxiang Flight Fastener Co., Ltd. is a professional manufacturer engaged in the design and manufacture of Thread Inserts, Self-Tapping thread inserts and other threaded fasteners. National high-tech enterprises. The company has independent technology development strength, advanced design level, automatic production equipment and high-precision detection equipment. Professional to provide customers with Thread Inserts, Self-Tapping thread inserts and other threaded fastener product design and use of the whole process of technical support. The company has passed ISO9001:2015 quality system certification. "AVIC-FLIGHT" brand was awarded the certificate of "famous brand in China" by China product quality evaluation center. The company has obtained more than 15 utility model patents and 12 software copyrights.

The company has more than 70 sets of processing equipment, mainly automatic equipment. The products are widely used in communication base station cooling device, automobile power transmission system, aerospace, aircraft, ship, wind power transmission system, national power grid transmission equipment, communication electronic equipment, medical equipment, heavy engineering machinery equipment, semiconductor high-end equipment and other fields.

The company can produce Thread Inserts products that meet the corresponding standards according to customer requirements. It can be produced according to MS21209, DIN8140, N926, ITN32760, MO-44421 and other standards.

The company's Thread Inserts cover Free running and Screw lock thread specifications in metric and English systems.Thread Inserts can be plated with Cd, Ag, Zn, Sn, green, red, blue and dry film lubrication. Self-Tapping inserts cover 302 / 303 and 307 / 308 thread specifications in metric and English systems. The materials are stainless steel 1.4305 (303), stainless steel 1.4301 (304), stainless steel 1.4401 (316), brass. Case hardened steel, zinc plated yellow chromed or zinc plated blue passaged.The company can produce 60 million pieces of inserts with various specifications every year, and provide all kinds of auxiliary tools.
